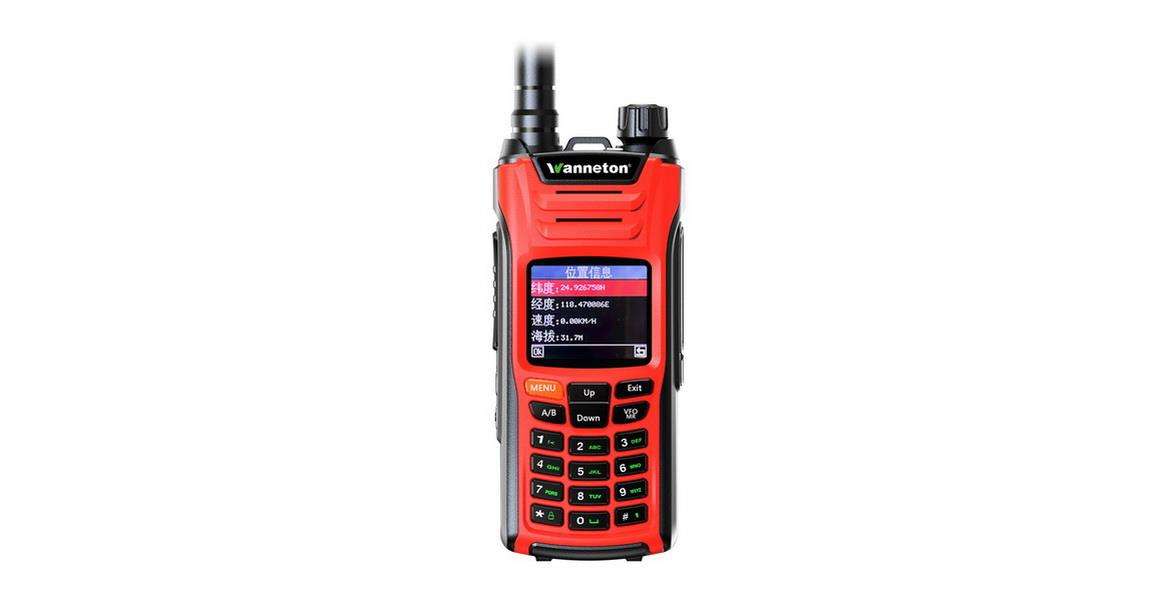

UV6F
Feature：10W high-powerFull frequency walkie talkieOne click decodingIdentity code displayAM aviation receptionFM RadioBuilt in input method editingGPS Locating(optional)Coordinate distance measurement sharingBluetooth(optional)Audible and visual alarmMultiple scanning One click decoding(fast sweep)I…
Download
Introduction:
Feature：
10W high-power
Full frequency walkie talkie
One click decoding
Identity code display
AM aviation reception
FM Radio
Built in input method editing
GPS Locating(optional)
Coordinate distance measurement sharing
Bluetooth(optional)
Audible and visual alarm
Multiple scanning
One click decoding(fast sweep)
Identity code alias display
Dual screen standby display
Frequency hopping speech scrambling and compression spreading
VFO
999 Storage
10W high-power
Full frequency walkie talkie
One click decoding
Identity code display
AM aviation reception
FM Radio
Built in input method editing
GPS Locating(optional)
Coordinate distance measurement sharing
Bluetooth(optional)
Audible and visual alarm
Multiple scanning
One click decoding(fast sweep)
Identity code alias display
Dual screen standby display
Frequency hopping speech scrambling and compression spreading
VFO
999 Storage
Parameters:
GENERAL：
Frequency：(VHF)136-174MHZ (UHF) 400-560MHZ
(UHF) 350-390MHZ(AM)108-136MHZ;FM:65-108MHZ
Storage：999個(gè)
Channel space：25KHz/12.5KHz
Battery capacity：DC7.4V±20% 4800mAh
Frequency stability：±0.5ppm
Work temperature：-30℃～+60℃
Storage temperature：-40℃～+85℃
Size：139mm*58mm*35mm（不包含天線）
Weight：303g（contain battery、belt、antenna）
Antenna impedance：50Ω
GPS(optional）：支持BDS，GPS，GLONASS三種定位
TRANSMITTER：
power：VHF：1W/5W/10W；UHF：1W/4W/10W
FM Modulation：11KΦF3E@12.5kHz；16KΦF3E@25kHz
Conduction/radiation stray：-36dBm＜1GHz；-30dBm＞1GHz
Communication sound and noise：≥-40dB@12.5kHz；≥-45dB@25kHz
Spurious radiation：-36dBm＜1GHz；-30dBm＞1GHz
Simulate adjacent Channel Power：≥-60dB@12.5kHz；≥70dB@25kHz
4FSK modulation accuracy：≤5%
Modulation frequency offset limitation：≤±2.5kHz@12.5kH
Radio distortion：≤5%
Radio response：300-3KHz，+1/-3dB
RECEIVER：
Simulate sensitivity：≤-121dBm@12dB SINAD
Intermodulation：-65dB@12.5/25kHz
Adjacent channel selectivity：≥60dB@12.5kHz
Common channel suppression：0～-12dB@12.5/25kHz：：
Rated radio power：＞1W
Rated radio distortion：≤5%
Communication sound and noise：≥-40dB@12.5kHz；≥-45dB@25kHz
conducted spurious emission：＜-57dBm
Frequency：(VHF)136-174MHZ (UHF) 400-560MHZ
(UHF) 350-390MHZ(AM)108-136MHZ;FM:65-108MHZ
Storage：999個(gè)
Channel space：25KHz/12.5KHz
Battery capacity：DC7.4V±20% 4800mAh
Frequency stability：±0.5ppm
Work temperature：-30℃～+60℃
Storage temperature：-40℃～+85℃
Size：139mm*58mm*35mm（不包含天線）
Weight：303g（contain battery、belt、antenna）
Antenna impedance：50Ω
GPS(optional）：支持BDS，GPS，GLONASS三種定位
TRANSMITTER：
power：VHF：1W/5W/10W；UHF：1W/4W/10W
FM Modulation：11KΦF3E@12.5kHz；16KΦF3E@25kHz
Conduction/radiation stray：-36dBm＜1GHz；-30dBm＞1GHz
Communication sound and noise：≥-40dB@12.5kHz；≥-45dB@25kHz
Spurious radiation：-36dBm＜1GHz；-30dBm＞1GHz
Simulate adjacent Channel Power：≥-60dB@12.5kHz；≥70dB@25kHz
4FSK modulation accuracy：≤5%
Modulation frequency offset limitation：≤±2.5kHz@12.5kH
Radio distortion：≤5%
Radio response：300-3KHz，+1/-3dB
RECEIVER：
Simulate sensitivity：≤-121dBm@12dB SINAD
Intermodulation：-65dB@12.5/25kHz
Adjacent channel selectivity：≥60dB@12.5kHz
Common channel suppression：0～-12dB@12.5/25kHz：：
Rated radio power：＞1W
Rated radio distortion：≤5%
Communication sound and noise：≥-40dB@12.5kHz；≥-45dB@25kHz
conducted spurious emission：＜-57dBm
