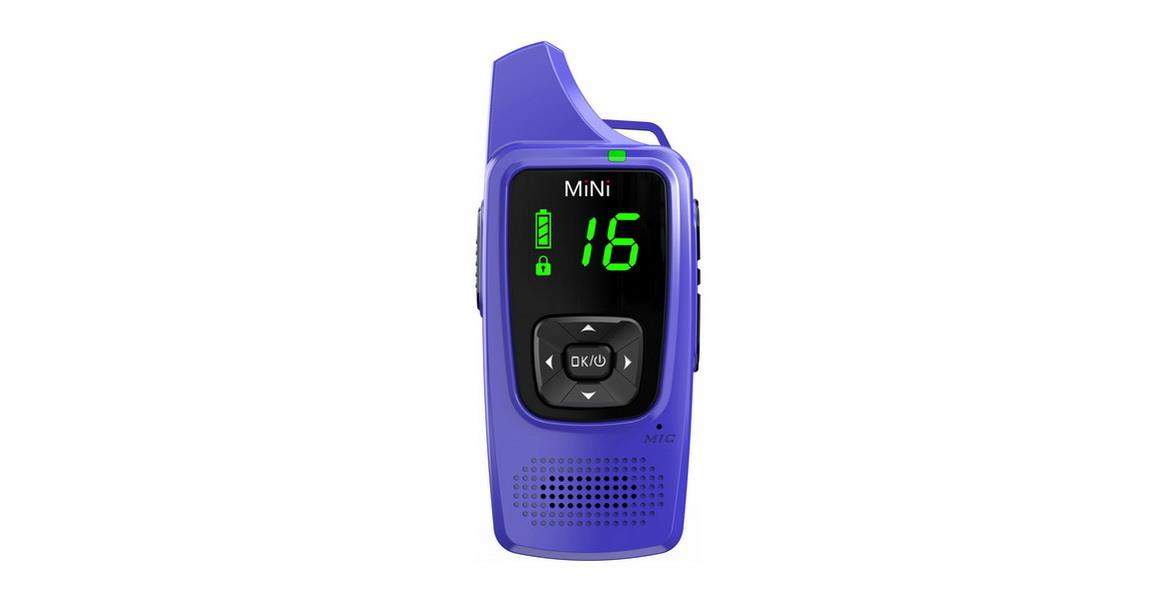

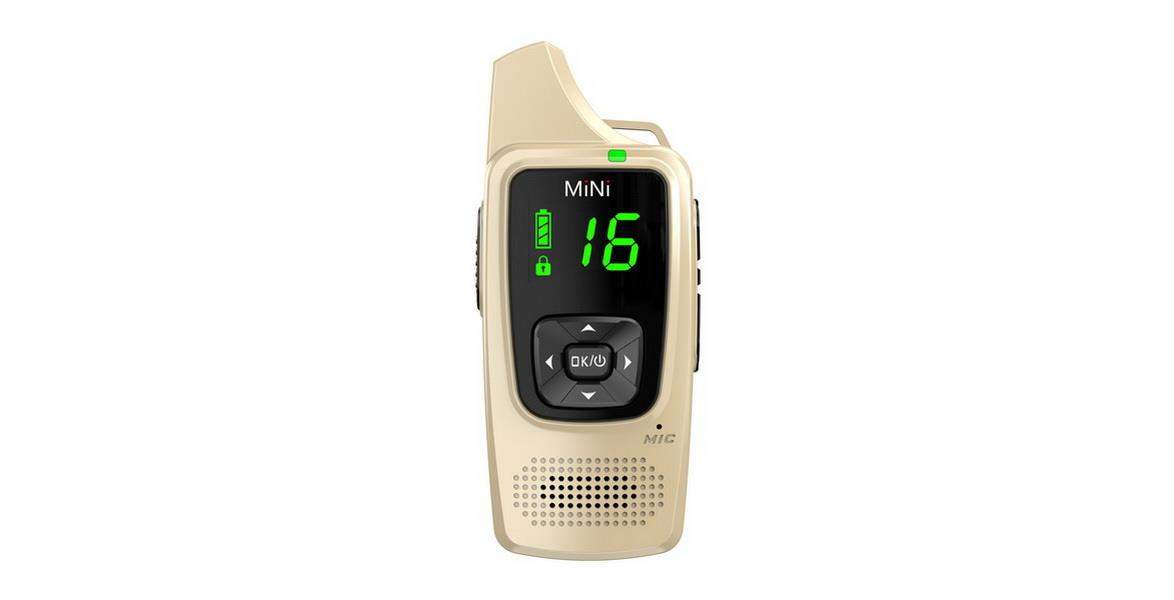

        M2



                        Feature：LED displayPower savingOne click decoding（optional）Wireless replication（optional）TYPE-C ChargingV0XUHF: 400–520MHZ(receiver/transmit)50 Groups CTCSS, 105 Groups DCS Chinese/English language reporting number99 StorageTime limited launchScan functionScramble functionCompanding functionLow…
















        Introduction:



                            Feature：

LED display

Power saving

One click decoding（optional）

Wireless replication（optional）

TYPE-C Charging

V0X

UHF: 400–520MHZ(receiver/transmit)

50 Groups CTCSS, 105 Groups DCS

Chinese/English language reporting number

99 Storage

Time limited launch

Scan function

Scramble function

Companding function

Low battery alarm

Computer programming

Wide/Narrow band

Special mute sound

Password frequency writing







        Parameters:



                            GENERAL：

Frequency ：UHF:400-520MHz

Storage：16

Work voltage：DC3.7V

Frequency stability：±2.5ppm

Work temperature ：-20℃~+50℃

Work way：Same frequency simplex

Antenna impedance：50Ω

Size：88x43x26 mm



TRANSMITTER：

Output power：＜5W

Emission Current：≤1000mA

Spurious power：≤7.5uW

Adjacent Channel Power：≤-65dB

modulation sensitivity：8~12mV

SNR（wide band）：≥-45dB

Max frequency deviatiom（wide band）：≤5KHz

Subaudio frequency（wide band）：0.7±0.1KHz



RECEIVER：

Sensitivity：-122dBm（12dB SINAD）

Audio power：≥350mW

Radio distortion：<10%

Receiver current：≤450mA

Clutter suppression：≥55dB

Intermodulation（wide band）：≥55dB

Adjacent channel selectivity(wide band)：≥55dB
